DSP-428II
The DSP-428II is a four input, eight output Digital Signal Processor (DSP) with additional AES/EBU input and FIR filters intended for use in loudspeaker processor units and system amplifiers for professional audio. Available in four performance levels and using only the best sounding components available, its unrivalled audio quality and feature set match the highest standards.

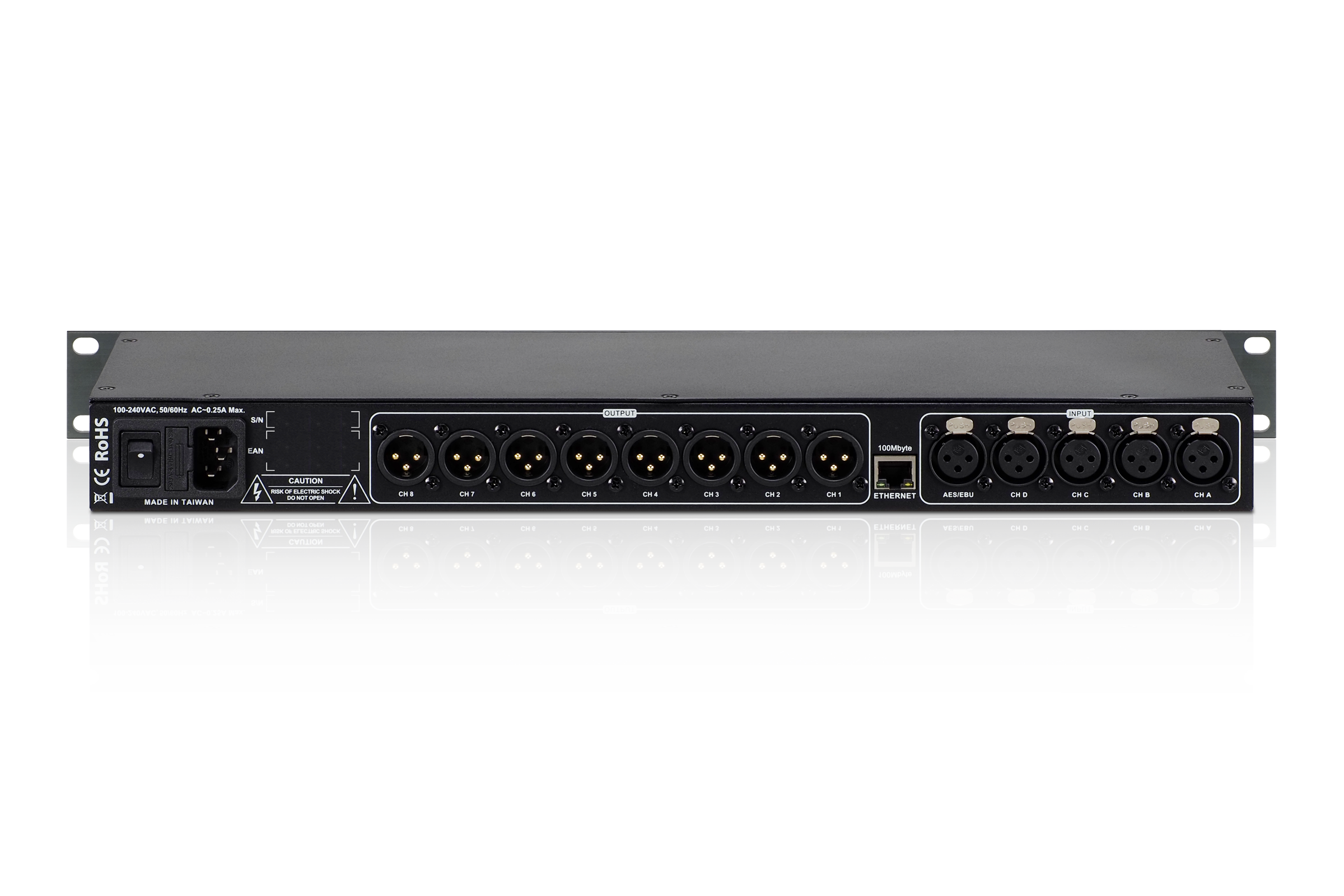

DSP-428II is UNiKA’s new generation speaker processor. It has built-in three new generation DSP clusters. In addition to maintaining the original 64bit conversion depth. The sampling rate has been increased to 96KHz. And each output provides a 384 taps FIR filter. And built-in newly developed RTA and noise generator. Users can connect an external USB test microphone to a computer or connect the test microphone via an external sound card bus or Dante DVS, then perform RTA measurements and record FIR calculation data to correctly correct the filter phase. Of course, you can also import FIR files through other testing software. Such as FIR Designer, REW or RiTA, etc. DSP-428II simplifies the operation panel. Only the MUTE button of the output channel and 6 PRESET call buttons are left. The physical operation process is greatly simplified. Advanced users can make detailed adjustments and settings through the original operating software. And store any 6 of the 100 presets to the device. The new LCD display also simplifies content. Only the networking IP address and the currently used default name and number are retained. There is a 100MHz TCP/IP network socket on the back of the device. It can be directly connected to a computer or integrated into a general LAN switch or router. It is strongly recommended to use a network with a router to connect, and the router will automatically assign an IP.
．3x DSP cluster
．64-bit conversion depth
．96KHz sampling rate
．4 analog inputs plus 1 AES/EBU input, AES/EBU input can be assigned to any input channel through software
．Adjustable input channel delay up to 2 seconds with 0.01 millisecond accuracy
．Total harmonic distortion > 0.05
．Typical dynamics up to 120 dB
．The software can connect and operate multiple devices at the same time
．The control software version includes Windows 32 and 64-bit formats, and is compatible with Mac M1/M2/M3
．The built-in RTA contains three test-specific noise
．Each output channel is equipped with a 384 tapsr FIR filter, and can be measured and calculated through the built-in RTA; it can also directly import FIR data packets measured by third-party test software.
| DSP-428II | |||
|---|---|---|---|
| Inputs | |||
| Analog Inputs (electronically balanced) | 4 | ||
| Dynamic Range | typ. 125dB(A) | ||
| Max. Input Level | +24dBu | ||
| Input Impedance (balanced) | 21kΩ | ||
| Input Impedance (single ended) | 10.5kΩ | ||
| Digital Inputs | 1x AES/EBU | ||
| 0dB at the LED level indicator | 1Vrms | ||
| Outputs | |||
| Analog Outputs | 8 | ||
| Dynamic Range | typ. 120dB(A) | ||
| Maximum Output Level | +12dBu | ||
| Noise floor at lowest signal level setting | < -104dBu(A) | ||
| Source Impedance | 235kΩ | ||
| 0dB at the LED level indicator | 2Vrms | ||
| System | |||
| Input-to-output latency | 350μs | ||
| Gain | 0 +/-0.5dB | ||
| Dynamic Range (unity gain) | > 116dB(A) | ||
| T.H.D. (@0dBV, 1KHz, unity gain, DSP only) | <0.005% | ||
| Frequency response | 10-40KHz +/-0.5dB | ||
| DSP | |||
| Number of processors | 3 | ||
| Sample rate | 96KHz | ||
| FIR | 8 x 384 taps | ||
| Presets | 100 | ||
| Delay | 2000ms (in) 50ms (out) | ||
| PEQ (each input and output) | 10 bands | ||
| Grouping EQ (each input) | 5 bands | ||
| Crossover (each input, LPF and HPF) | 24 dB/Oct | ||
| Crossover (each output, LPF and HPF) | 48 dB/Oct | ||
| Filtered Compressors (each input and output) | 4 bands | ||
| Limiter (switchable true RMS / Zero Attack, each in and out) | 1 bands | ||
| Power Supply | |||
| Universal Power Supply | 100-240 VAC, 50/60Hz | ||
| Power Consumption | 20W max. | ||
| Fuse | 0.5A/250V | ||
| Others | |||
| Dimension (W x H x D) ex. Rack Ears | 445 x 44.5 x 145 mm | ||
| Nelt Weight | 2.0kg | ||
| Shipping Dimension (W x H x D) | 553 x 70 x 243 mm | ||
| Shipping weight | 2.65kg | ||
| Content of Master Carton | 6 pieces | ||
